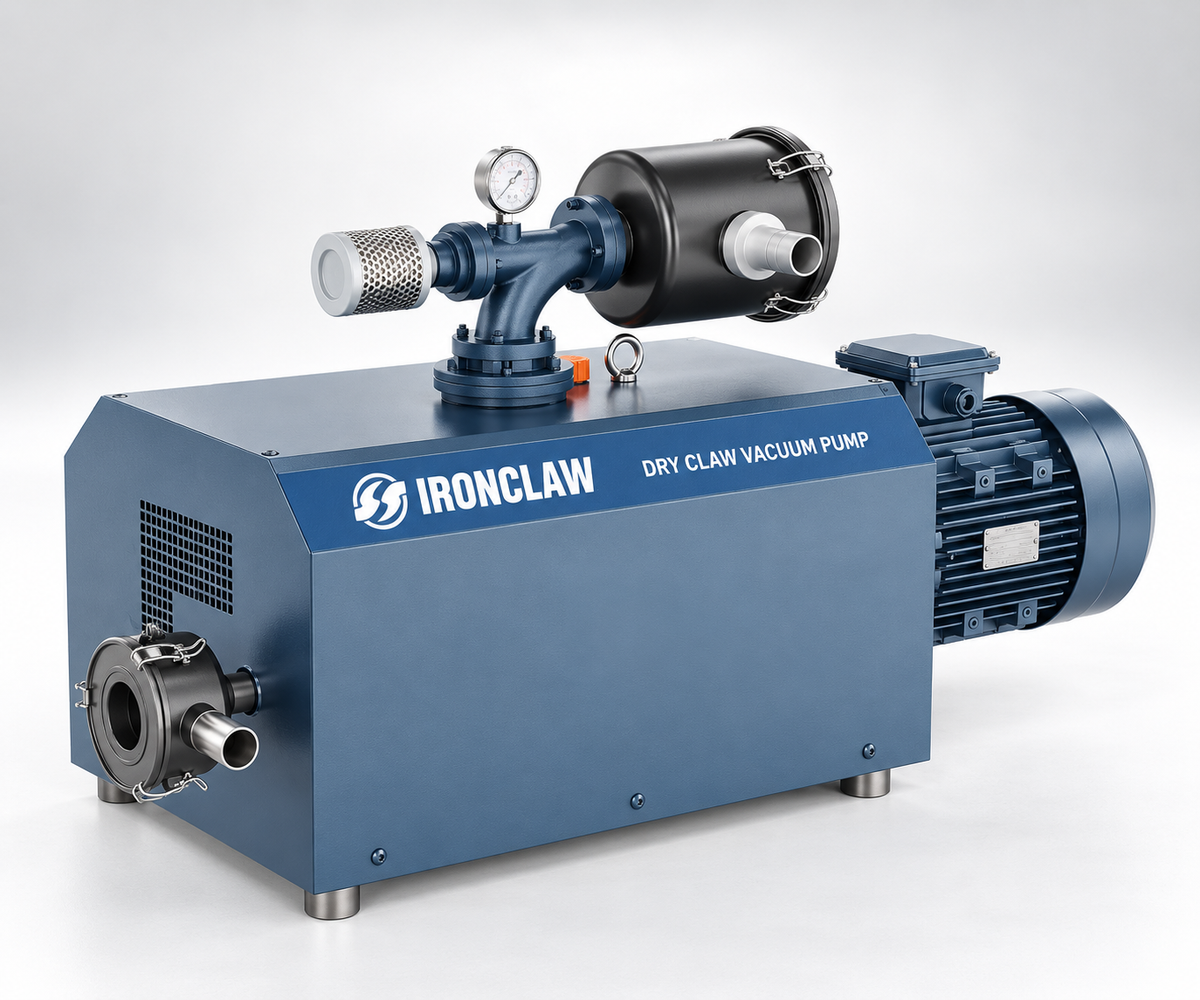

IRONCLAW CVP175-WC – 175 CFM Water-Cooled Dry Claw Vacuum Pump
IRONCLAW CVP175-WC – 175 CFM Water-Cooled Dry Claw Vacuum Pump
Couldn't load pickup availability
Dispatch & Delivery
In-stock pumps dispatch from Auburn Hills, Michigan, the next business day. Free shipping is included on pump orders. Buyers must have a forklift or loading dock available for unloading at delivery. Delivery time varies by destination.
Need deeper vacuum without sacrificing flow? The IRONCLAW CVP175-WC delivers 175 CFM of pumping speed with an enhanced 27 inHg vacuum level, thanks to its liquid-assisted Hydro flush system. This makes it a powerful, cost-effective alternative to other leading claw vacuum pump manufacturers for applications that demand deeper, more consistent vacuum. Every IRONCLAW dry claw vacuum pump ships with a UL-verified motor and includes free shipping.
Included Equipment
Supplied with the core vacuum block and direct-coupled 3-phase motor. An inlet filter is not included, either integrated or loose, and must be purchased separately. External plumbing, pressure-reducing valves, and discharge separation equipment are not included.
Hydro Installation Requirements
- Continuous regulated external flush supply: minimum 0.8 GPM (3.0 L/min).
- Fluid inlet connection: 3/8 inch NPT, separate from the 2-inch vacuum inlet.
- Install an upstream pressure-reducing valve (PRV) to limit flush-feed pressure to 15 PSI maximum.
- Discharge contains process gas and flush liquid. Install a liquid-gas separator tank directly at the exhaust port for continuous drainage.
- The separator is supplied by the buyer or may be requested as an engineering add-on.
Confirm model-specific fluid quality, temperature, piping, and motor shutdown interlock requirements with IRONCLAW before integration. This summary does not replace the installation instructions.
Key Specifications
| Suction rate | 175 CFM (300 m³/h) |
| Vacuum level | 27 inHg (-920 mBar) |
| Motor power (60 Hz) | 12 HP / 9.0 kW, UL-verified |
| Speed | 3600 RPM |
| Pump technology | 100% oil-free dry claw, contact-free rotors |
| Cooling / fluid system | Internal liquid flush (Hydro variant) |
| Vacuum port | 2" NPT |
| Pressure relief port | 1-1/2" NPT |
| Weight | 540 lb |
| Size | 48L × 20W × 18H inch |
| Shipping | Free on all orders |
Why Choose the CVP175-WC
- Deeper vacuum than the standard CVP175 – 27 inHg vs. 23.6 inHg, ideal for porous materials and demanding suction applications
- Liquid-assisted Hydro design – maintains stable performance during continuous, high-demand operation
- Oil-free, low-maintenance – no contamination, reduced service costs
- UL-verified motor – electrical safety compliance for U.S. installations
- Free shipping – no hidden freight costs
- Continuous-duty reliability – built for 24/7 operation in demanding environments
Ideal Applications
- Hospital & clinic medical vacuum / surgical suction requiring deeper vacuum
- CNC woodworking & plastics routing on porous or high-leak materials
- Industrial pneumatic conveying & central vacuum systems
- OEM vacuum system integration requiring enhanced vacuum depth
CVP175-WC vs. Other Leading Manufacturers
The CVP175-WC delivers deeper vacuum performance than comparable claw vacuum pumps from other leading manufacturers at similar flow rates — at a more accessible price, with a UL-verified motor, free shipping, and simpler maintenance.
