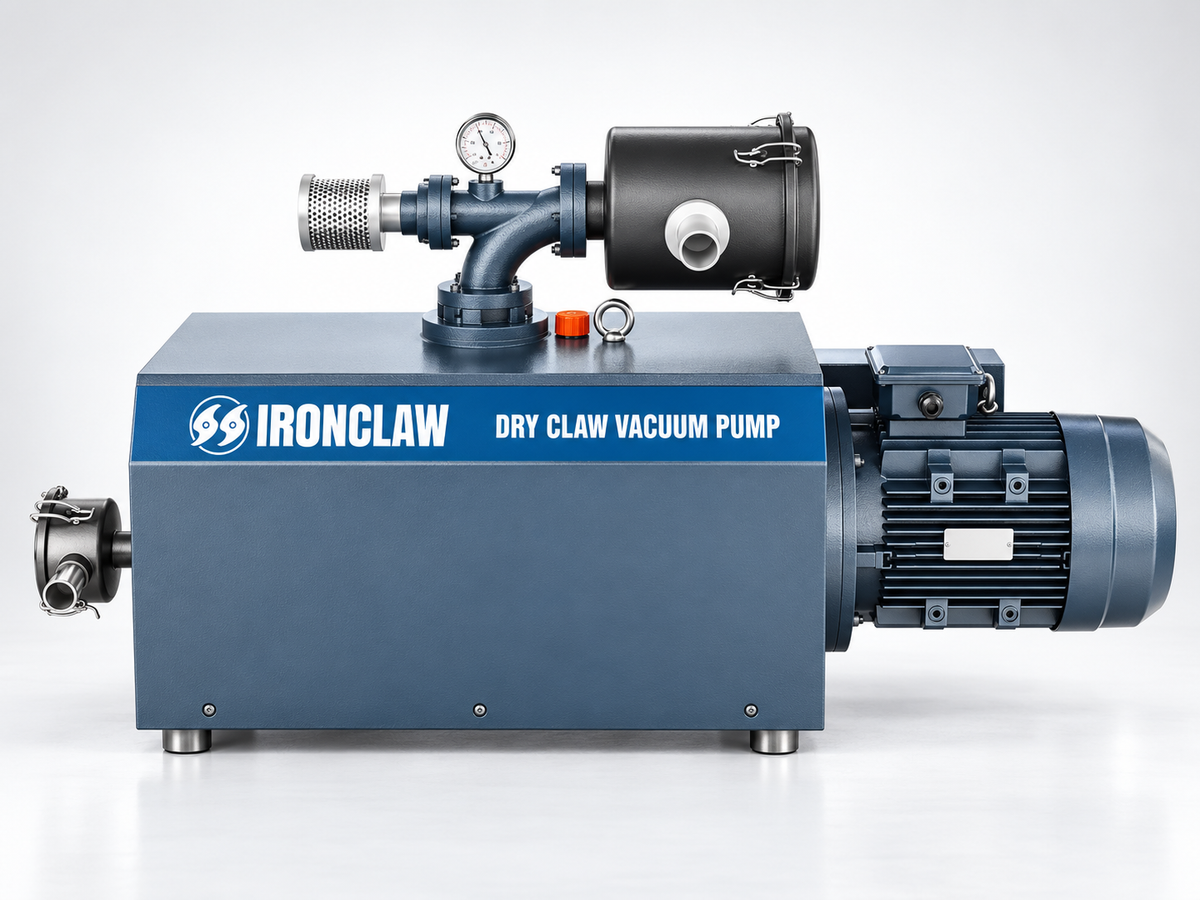

IRONCLAW CVP250-WC – 250 CFM Water-Cooled Dry Claw Vacuum Pump

Dispatch & Delivery

Pump orders ship from Auburn Hills, Michigan, within 3 business days of payment confirmation. Free shipping is included on pump orders. Buyers must have a forklift or loading dock available for unloading at delivery. Delivery time varies by destination.

Need deeper vacuum at high flow for demanding production environments? The IRONCLAW CVP250-WC delivers 250 CFM of pumping speed with an enhanced 27 inHg vacuum level, thanks to its liquid-assisted Hydro flush system. This makes it a powerful, cost-effective alternative to other leading claw vacuum pump manufacturers for applications that demand deeper, more consistent vacuum at scale. Every IRONCLAW dry claw vacuum pump ships with a UL-verified motor and includes free shipping.

Included Equipment

Supplied with the core vacuum block and direct-coupled 3-phase motor. An inlet filter is not included, either integrated or loose, and must be purchased separately. External plumbing, pressure-reducing valves, and discharge separation equipment are not included.

Hydro Installation Requirements

• Continuous regulated external flush supply: minimum 1.2 GPM (4.5 L/min).
• Fluid inlet connection: 3/8 inch NPT, separate from the 2-inch vacuum inlet.
• Install an upstream pressure-reducing valve (PRV) to limit flush-feed pressure to 15 PSI maximum.
• Discharge contains process gas and flush liquid. Install a liquid-gas separator tank directly at the exhaust port for continuous drainage.
• The separator is supplied by the buyer or may be requested as an engineering add-on.

Confirm model-specific fluid quality, temperature, piping, and motor shutdown interlock requirements with IRONCLAW before integration. This summary does not replace the installation instructions.

Key Specifications

Why Choose the CVP250-WC

• Deeper vacuum than the standard CVP250 – 27 inHg vs. 23.6 inHg, ideal for porous materials and high-leak systems
• Liquid-assisted Hydro design – maintains stable performance during continuous, high-demand operation
• High flow for large-scale systems – 250 CFM for large CNC tables and multi-drop vacuum lines
• Oil-free, low-maintenance – no contamination, reduced service costs
• UL-verified motor – electrical safety compliance for U.S. installations
• Free shipping – no hidden freight costs
• Continuous-duty reliability – built for 24/7 operation in demanding environments

Ideal Applications

• Hospital & clinic medical vacuum / surgical suction requiring deeper vacuum
• CNC woodworking & plastics routing on porous or high-leak materials at scale
• Industrial pneumatic conveying & central vacuum systems
• OEM vacuum system integration requiring enhanced vacuum depth

CVP250-WC vs. Other Leading Manufacturers

The CVP250-WC delivers deeper vacuum performance than comparable claw vacuum pumps from other leading manufacturers at similar flow rates — at a more accessible price, with a UL-verified motor, free shipping, and simpler maintenance.
